Swing Barrier Gate

Round Arc Angle Swing Gate CSEBZ208

Product DescriptionCSEBZ208The CSEBZ208 is a single lane swing barrier turnstile series designed for smooth and silent operation and draws very little power.It is made of stainless steel which makes C

  • Model: CSEBZ208
Product Description
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
CSEBZ208
The CSEBZ208 is a single lane swing barrier turnstile series designed for smooth and silent operation and draws very little power.
It is made of stainless steel which makes CSBZ208 highly durable. CSBZ208 barriers are normally held in a locked position, thus
denying access to the secured side. Upon CSBZ208 plus’s reader (RFID and/or fingerprint) positively recognizing a user’s valid
access card or fingerprint, its barriers swing automatically, thus allowing users passage to the secured side.
CSBZ208 provides both security and convenient space, all in a very durable and elegant compact design.

Features
Reliability
•SUS304 stainless steel case ensures long-lasting durability •High quality electrical components Safety Features. •All
smooth finishing. No exposed screws. •Ergonomic design makes card and fingerprint authentication fast & simple for users.

Built-in Reader Integration
•CSEBZ208 plus series already integrated with customers’ preference for either card or fingerprint
access control reader which greatly reduces installation time & expenses.
•CSEBZ208 series and associated access control readers
have passed the factory test before shipment. •We provide the plug&play device with the lowest price in the whole industry.

Simplification
•Simplify structure and connection, easy to maintain.•Industrial Control board,durable and easy to operate.

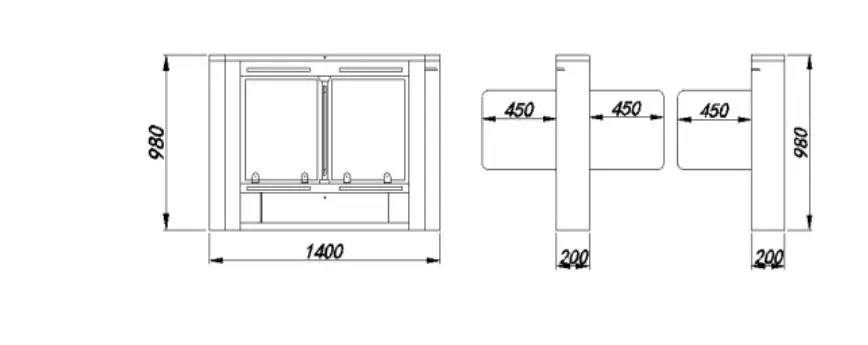

Dimensions
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Application
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong

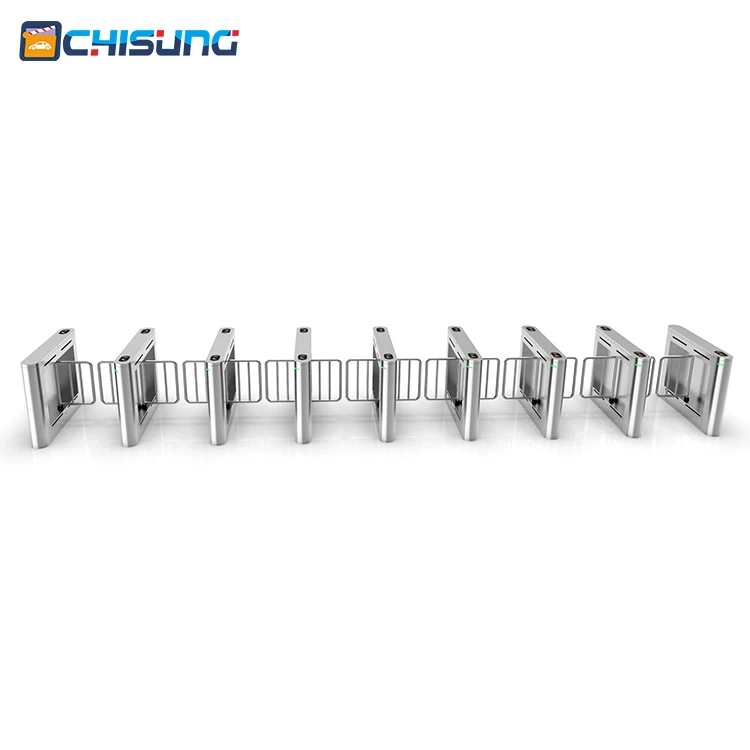

Product Display
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong


Specification
Model Number
CSEBZ208
Power supply
AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working temperatur
-28℃~60℃
Working environment
Indoor&Outdoor
working humidity
20%-95% (Non-condensing)
Lane width(mm)
550-900
Dimension with packing(mm)
L=1500, W=300, H=1100
Material
SUS304 Stainless Steel
barrier Material
Acrylic Glass or Stainless Steel
Speed of throughput
RFID
Maximum 30/ minute

Fingerprint
Maximum 25/ minute
Net weight(kg)
120
Weight with packing(kg)
150
Cabinet material
SUS304 Stainless Steel
Barrier material
Acrylic Glass or Tempered Glass
Barrier movement
Swing
Emergency mode
Y
Security level
Medium
MCBF
5 million


Packing & Delivery
