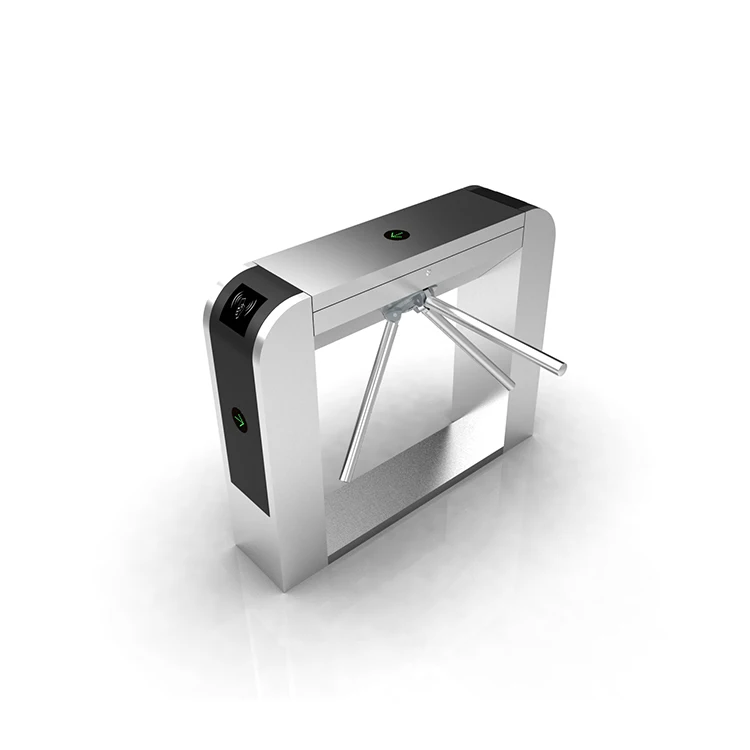

CSTSE112

Our CSTSE112 tripod turnstile represent classic and safe way to protect your premises. They are used in various indoor&outdoor environment applications. They fit perfectly as an economical option in the office buildings and other related applications.

Function&Features

Features

•SUS304 stainless steel robust cabinet with pretty spot welding and polishing and robust arms assembly
•Bi-directional tripod turnstile with arm reliably drop on fire activation,not bounce up and block the walkway
•LED pictogram for intuitive user experience and high throughput in both directions
•High quality at an affordable price
•Low power consumption
•Wide range of accessories
•Easy and simple installation process and maintain and monitor
•Prevented by the anti-reverse rotation device at 60 degree rotation
•Mechanism with shock absorber/damper ensure silent smooth operation
•Industrial drive board with long service time

Case Custom

Support multiple access control systems

Specifications

Power requirements		AC110V/220V, 50/60Hz
Power consumption	Starting	73W
	Standby	20W
	Unlock	63W
Working temperature		-28 °C - 60 °C
Working humidity		5%-80%
Working environment		Indoor/Outdoor(if sheltered)
Speed of throughput	RFID	Maximum 30/minute
	Fingerprint	Maximum 25/minute
Lane width(mm)		550-570
Dimension(mm)		L=1200, W=280, H=980
Dimension with packing(mm)		L=1400, W=400, H=1100
Net weight(kg)		75
Weight with packing(kg)		80
LED indicator		Y
Cabinet material		SUS304 Stainless Steel
Barrier material		SUS304 Stainless Steel
Input interface		RS485/Dry Contact/Relay/DC12V
Barrier movement		Rotation
Emergency mode		Y
Security level		Medium
Mean cycles between failure (MCBF)		5 million
Options/Accessories		Counter, SUS316 Cabinet and Lid, Remote Control,Access Control
Drive Variant		Fully auto/Semi-auto
Housing Thickness		1.51.2mm(TopHousing)
Enclose Rating		IP54

Packing & Delivery

Wooden box
