Flap Barrier Gate

Flap Turnstile CSEYZ323

Product DescriptionCSEYZ323 The CSEYZ323 flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume.The CSEYZ323 is a single lane flap barrier turnsti

  • Model: CSEYZ323

Product Description

Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
CSEYZ323

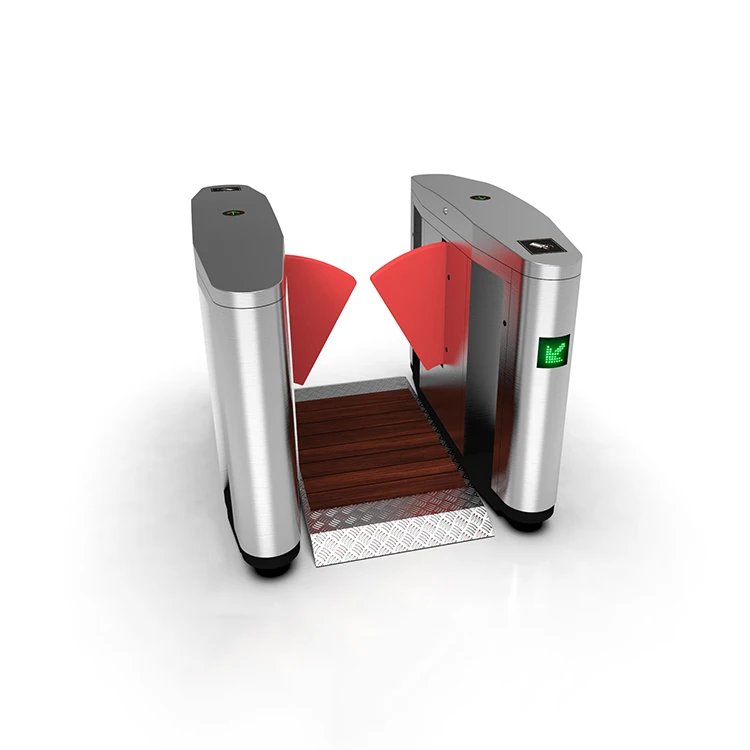

The CSEYZ323 flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume.
The CSEYZ323 is a single lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes CSEYZ323 highly durable.
CSEYZ323 flap barriers are normally held in a locked position, thus denying access to the secured side. Upon CSEYZ323’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.
During emergencies the barriers automatically retract upward, thereby avoid users being trapped.A battery for power outage safety can be installed for retracting the barrier automatically.
CSEYZ323 provides both security and convenient space, all in a very durable and elegant compact design.
Function&Features
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
 Features
Reliability
• SUS304 stainlesssteel casework ensure long-lasting durability.
• High quality electrical components.
Safety Features
• Barriersretract automatically during emergencies.
• Barriersretract automatically during power outage with battery installed.
• Allsmooth finishing. No exposed screws.
• Ergonomic design makes card and fingerprint authentication fast & simple for users.
Built-in Reader Integration
• CSEYZ323 plus series is already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
CSEYZ323 plusseries and associated access control readers are all factory-tested prior to shipping.
• WE provides true plug&play turnstiles with the lowest possible total cost of ownership in the industry.


Specification
Power requirements
AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working temperature
-28℃~60℃
Working humidity
5%~80%
Working environment
Indoor/outdoor (if sheltered)
Speed of throughput
RFID
Maximum 30/ minute

Fingerprint
Maximum 25/ minute
Lane width(mm)
600mm
Dimensions(mm)
L=1200,W=280,H=980
Dimension with packing(mm)
L=1300,W=400,H=1100
Weight with packing(kg)
95
LED indicator
Y
Cabinet material
SUS304 Stainless Steel
Sensor
4 pairs
Barrier material
Acrylic(18mm)/PMMA(thickness 50mm, red/blue optional)
Barrier movement
Retracting
Emergency mode
Y
Security level
Medium
MCBF
3 million
Options/Accessories
Counter, SUS316 Cabinet and Lid, Remote Control,Access Control
Transmission Variant
Belt transmission
Housing Thickness
1.2*1.0mm(Top*Housing)
Enclose Rating
IP54


Packing & Delivery
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
carton/wooden box
